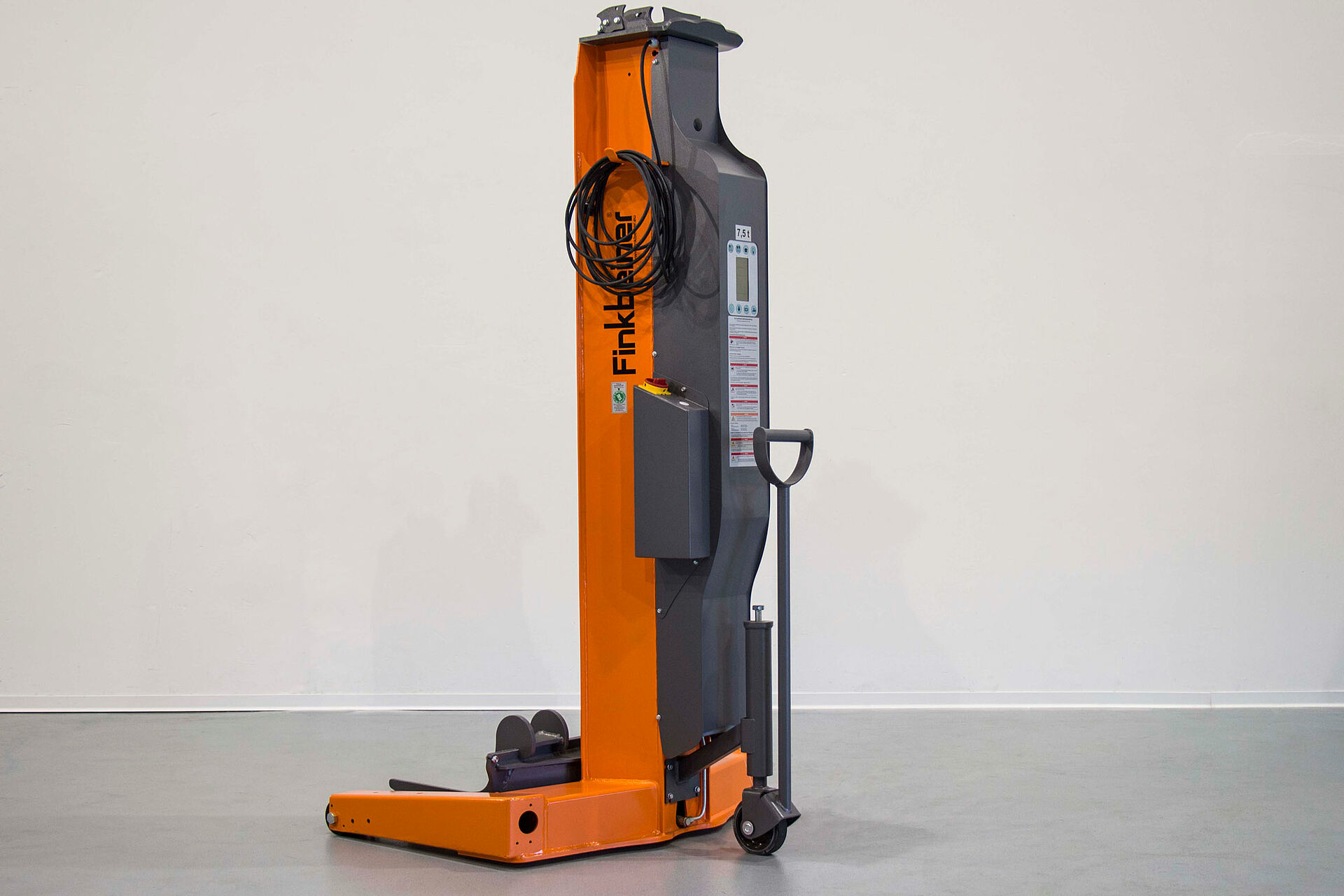

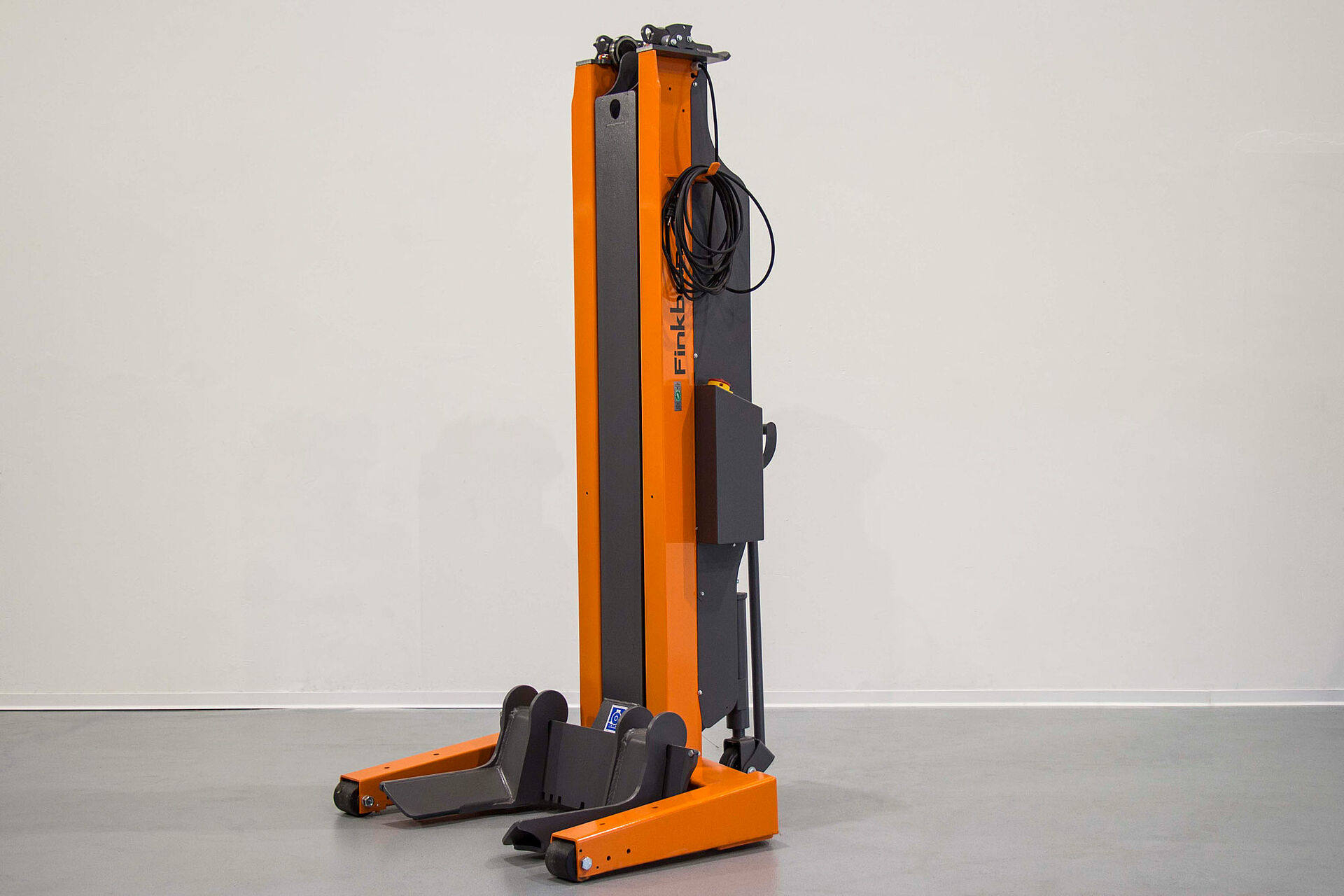

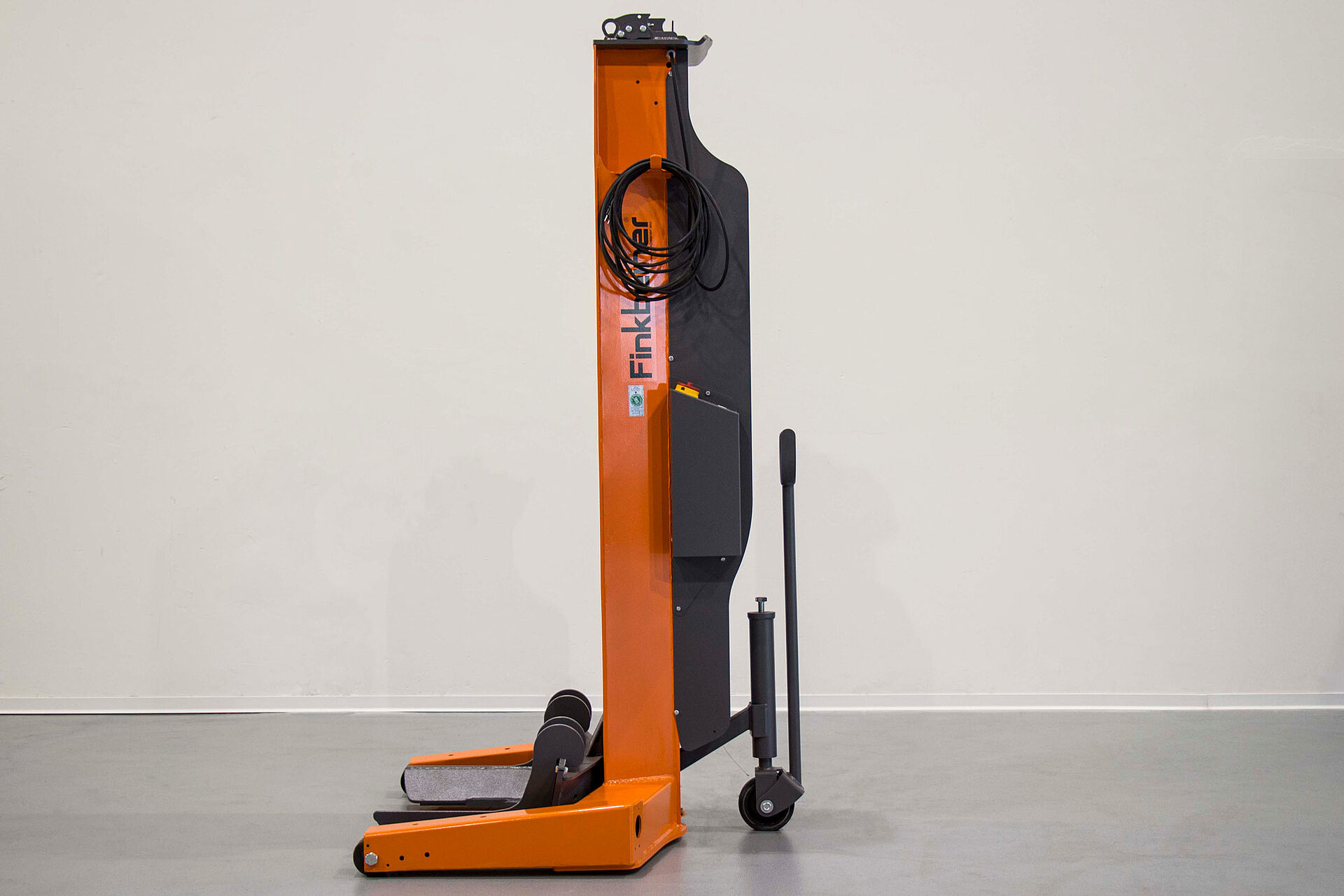

Mobile column lift- ehb907v11dc-6 wireless(1C)

Description Additional information Description Article no. EHB907V11DC01-6 Lifting unit type of columns all columns identical quantity of columns 6 quantity of columns, maximum 10 Load support load support adjustable wheel fork capacity per column 7.5 t capacity 45 t wheel size Ø minimum (mm) 550 mm wheel size Ø maximum (mm) 1140 mm length of fork (mm) 385 mm Lifting height lifting stroke effective 1750 mm lifting height 1850 mm frame height at front (mm) 100 mm Speed lifting time 90 sec. lowering time (under load) 90 sec. Drive mode of drive electro-hydraulic motor DC voltage motor power per column (kW) 2.2 KW Power supply type of power supply battery-powered type of battery deep cycle, maintenance-free battery capacity per column 80 Ah lift cycles at full load 20 fuse, per column (Amps) 2.5 A total battery voltage 24 V length of charging cable 10 m charging concept EasyCharge charging voltage 230 V frequency of power supply 50 Hz charging time 8 h Communication communication via radio, wireless Operation mode of operation operation at each column activation all, individual, pair control electronic Softstart X Regularisation synchronisation proportional valves, infinitely variable Travelling device travelling device at each column travelling device at front 2 front wheels, fixed travelling device at rear 1 wheel handle, spring-loaded, self-lowering under load ground clearance at front 15 mm ground clearance at rear 35 mm Load securing load securing hydraulic and mechanical Dimensions length 1200 mm width 1165 mm height 2255 mm height of fork (mm) 100 mm Weight weight per column (kgs) 540 kg Protection class IP54 Surface treatment type of surface treatment powder coating colour orange RAL2004 / grey RAL7015 Additional information Brands Finkbeiner Capacity 45000kg
