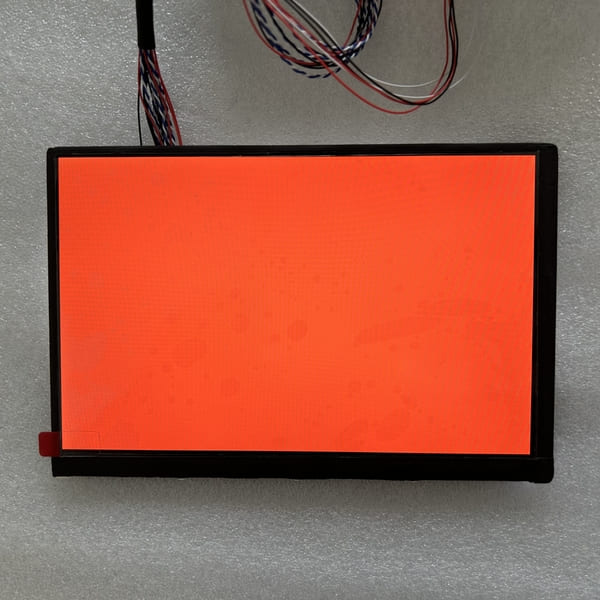

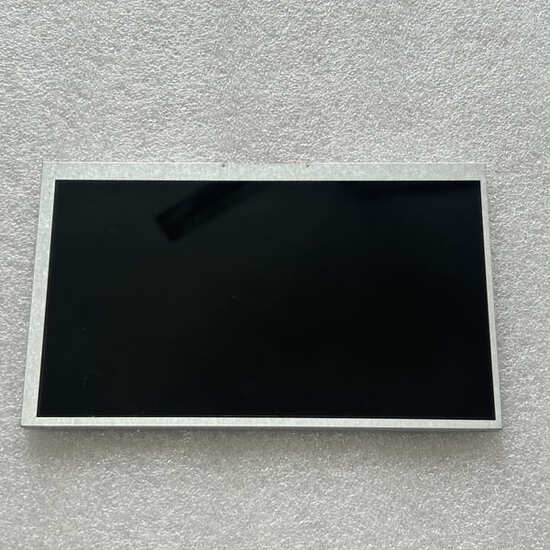

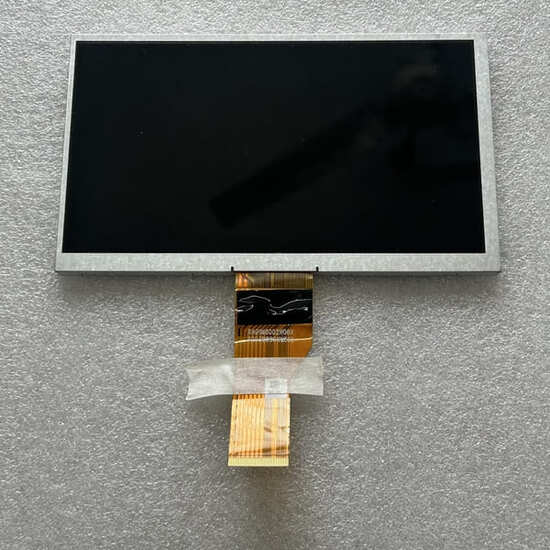

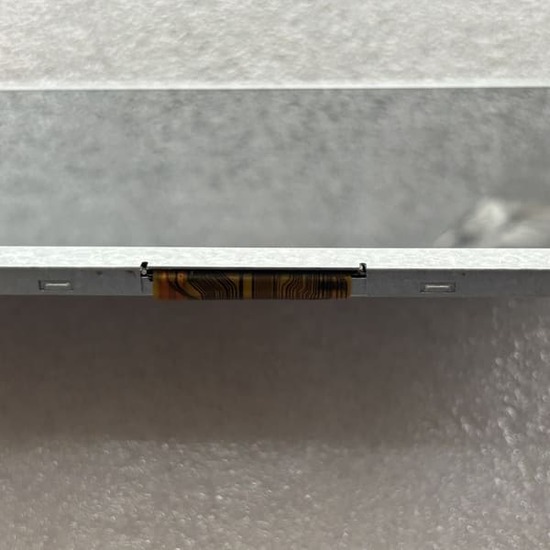

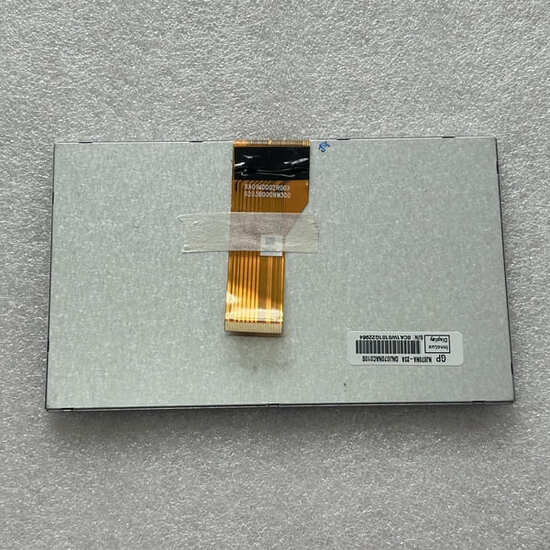

LCD Controller Board with 7inch LCD Screen Panel NJ070NA-23A

More about the product * All sizes are optional! * Capacitive Touch/Resistive Touch optional! * Many installation methods are available! * Many interfaces, adapt to different devices! * Self-developed motherboard！ * Optional with speaker! * More than 30,000 hours of service life! * Support OEM/ODM service! Customized packing box, customized LOGO on monitor.  warranty. QualityEach item must   be tested OK before shippingDiscountMore quantity,   larger discountMOQ1 pcsPaymentT/T, Western Union, MoneyGram,  Escrow etcPackageAnti-static bag,   Bubble bag, Carton boxDelivery TimeIn 1-3 working   days after payment confirmedShippingDHL, EMS, Fedex, UPS, TNT, HK Post Air Mail etcWarranty90 days warranty  An LCD module is more than just the glass panel; it’s a complete, integrated unit ready for use in a device. Its features encompass its physical characteristics, electrical interface, visual performance, and environmental robustness.1. Core Visual Performance FeaturesThese features directly impact the quality of the image you see.Resolution: The number of pixels (width x height) on the screen (e.g., 800×480, 1280×800, 1920×1080). Higher resolution means sharper images and more detail.Display Size: Typically measured diagonally in inches (e.g., 3.5″, 7″, 10.1″).Aspect Ratio: The ratio of width to height (e.g., 4:3, 16:9, 16:10). Modern displays are often widescreen (16:9).Brightness (Luminance): Measured in nits (cd/m²). This determines how well the screen can be viewed in bright lighting conditions. Features include:Standard Brightness: ~250-300 nits for indoor use.High Brightness: 500-1000 nits for sunlight-readable applications (outdoor kiosks, industrial panels).Viewing Angle: The maximum angle at which the display can be viewed without significant color shift or contrast loss. Types of LCD technology define this:TN (Twisted Nematic): Fast response but poor viewing angles.IPS (In-Plane Switching): Excellent viewing angles (178°/178° is common) and color reproduction, making it the premium choice.VA (Vertical Alignment): Good contrast and a middle ground between TN and IPS.Contrast Ratio: The ratio between the brightest white and the darkest black. A higher ratio (e.g., 1000:1) means more depth and better image quality.Backlight Type: The light source behind the LCD panel.LED (Light Emitting Diode): Universal standard. Features low power consumption, long life, slim form factor, and no mercury.CCFL (Cold Cathode Fluorescent Lamp): Older technology, now largely obsolete. Thicker, higher power consumption, and contains mercury.Color Depth: The number of bits used to represent the color of a single pixel, determining how many colors can be displayed.6-bit (262K colors): Standard for many smaller modules.8-bit (16.7M colors): True color, standard for high-quality displays.Interface can also dictate this (e.g., 24-bit RGB).Response Time: The time it takes for a pixel to change from one color to another, measured in milliseconds (ms). Lower values (e.g., 5ms) are better for fast-moving video to prevent motion blur.2. Physical and Mechanical FeaturesThese define the module’s form factor and construction.Outline Dimensions: The exact physical width, height, and depth (including the PCB and connectors) of the entire module.Active Area: The actual area of the screen that displays the image.Bezel: The frame around the display. Can be very narrow for modern, sleek designs or wider for industrial robustness.Surface Treatment:Polarizer: An anti-glare (matte) finish diffuses reflections, ideal for brightly lit environments.Optical Bonding: A resin is applied between the touch panel and LCD, and sometimes between the LCD layers themselves. This reduces internal reflections, improves sunlight readability, increases durability, and prevents condensation.Mounting: Includes holes and brackets for securing the module into a housing or device.Weight: Important for portable and handheld applications.3. Interface and Control FeaturesHow the module connects to and is controlled by the main system (e.g., Arduino, Raspberry Pi, custom PCB).Interface Type: How video data is sent to the module.Parallel RGB/LVDS: Common in embedded systems and larger TFTs.MIPI DSI: High-speed, low-power serial interface common in smartphones and modern SBCs.SPI: Simple, low-speed interface used for small, monochrome, or low-color displays (e.g., 128×64 OLED-like, but also some color TFTs).HDMI/MIPI DSI: Input for receiving direct video signals.Controller Board (Driver IC): Most modules include a controller that handles the complex signals needed to drive the LCD. The main board only needs to send simple commands and data.On-Chip Memory (GRAM): The controller has its own memory to hold the frame buffer, freeing up the main microcontroller’s resources.Command Set: Most controllers accept standard commands (e.g., ST7789, ILI9341) which are well-supported by libraries.4. Input and Touch FeaturesMany LCD modules integrate touch functionality.Touch Panel Technology:Resistive: Pressure-activated. Low cost, can be used with a stylus or glove, but less durable and only single-touch.Capacitive (Projected Capacitive – PCAP): Finger-activated. Supports multi-touch gestures (pinch, zoom), high clarity, and is highly durable. The modern standard for consumer devices.Touch Controller Interface: How touch data is sent back to the host (e.g., I²C, SPI).5. Environmental and Reliability FeaturesCrucial for industrial, automotive, and medical applications.Operating Temperature Range: The range of temperatures within which the module will function correctly (e.g., -20°C to 70°C for commercial, -40°C to 85°C for industrial/automotive).Storage Temperature Range: The range for safe non-operation.IP Rating (Ingress Protection): Rates the module’s protection against dust and water (e.g., IP65 for dust-tight and protection against water jets). This usually requires a special seal.MTBF (Mean Time Between Failures): A reliability prediction, often in hours, indicating the expected operational life.6. Additional FeaturesBuilt-in Features: Some modules include speakers, microphones, or light sensors.Software Support: Availability of drivers, libraries (for Arduino, PlatformIO, etc.), and example code.
