BIGTREETECH EZ2209 Stepper Driver

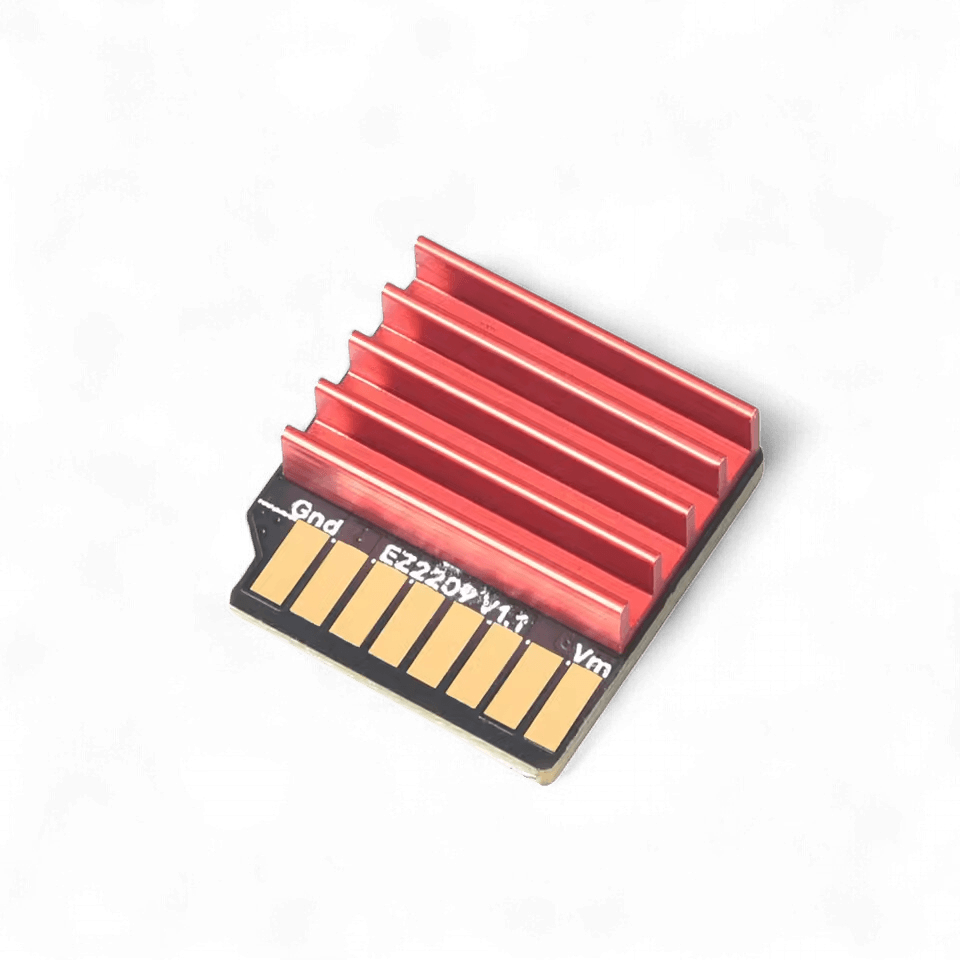

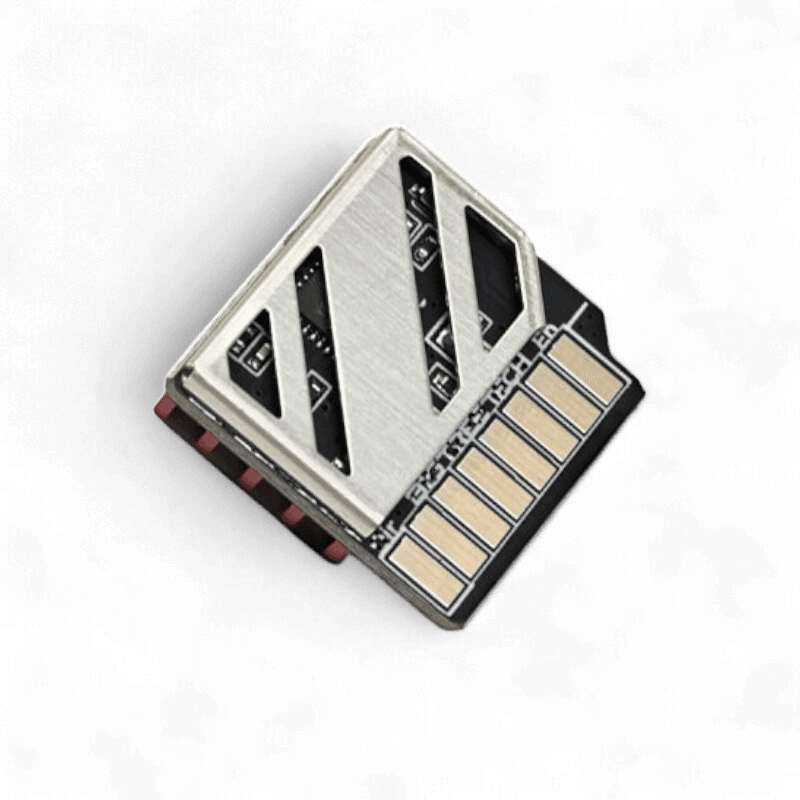

BIGTREETECH EZ2209 Stepper DriverThe EZ2209 is a pluggable stepper motor driver module designed by Bigtreetech with excellent performance, convenient plugging and unplugging, simply beautiful and practical.FeaturesStealthChop can realize quieter operation of the motor when running at low speed. It is recommended to select it when the maximum speed of the motor is lower than 300RPMSpreadCycle can achieve quietness and low power consumption in a wide range of speed and torque. It is recommended to select it when the maximum speed of the motor exceeds 300RPMStallGuard2™: It can be used for motor stall detection when there is no limit switch (limit switch is recommended)The newly developed board frame is used to match the new connector, so that customers can experience the easy plug’n’play compared to the traditional drivers with pinsAdopt a new type of customized heat sink to enhance the heat dissipation capacity while protecting the driver chip from external damageTechnical Data:Driver Chip: TMC2209-LASupported Voltage: 12-24VMax Current: 2ARecommended Current: <= 1.3AOperation mode: UART ModeSensing Resistance: 0.11RStealth Chop ModeSpread CycleStall GuardMax. Subdivision: 256Size: 18.5×19.8mmMore info: on GIT
