LDO AFC-IO Board for BoxTurtle

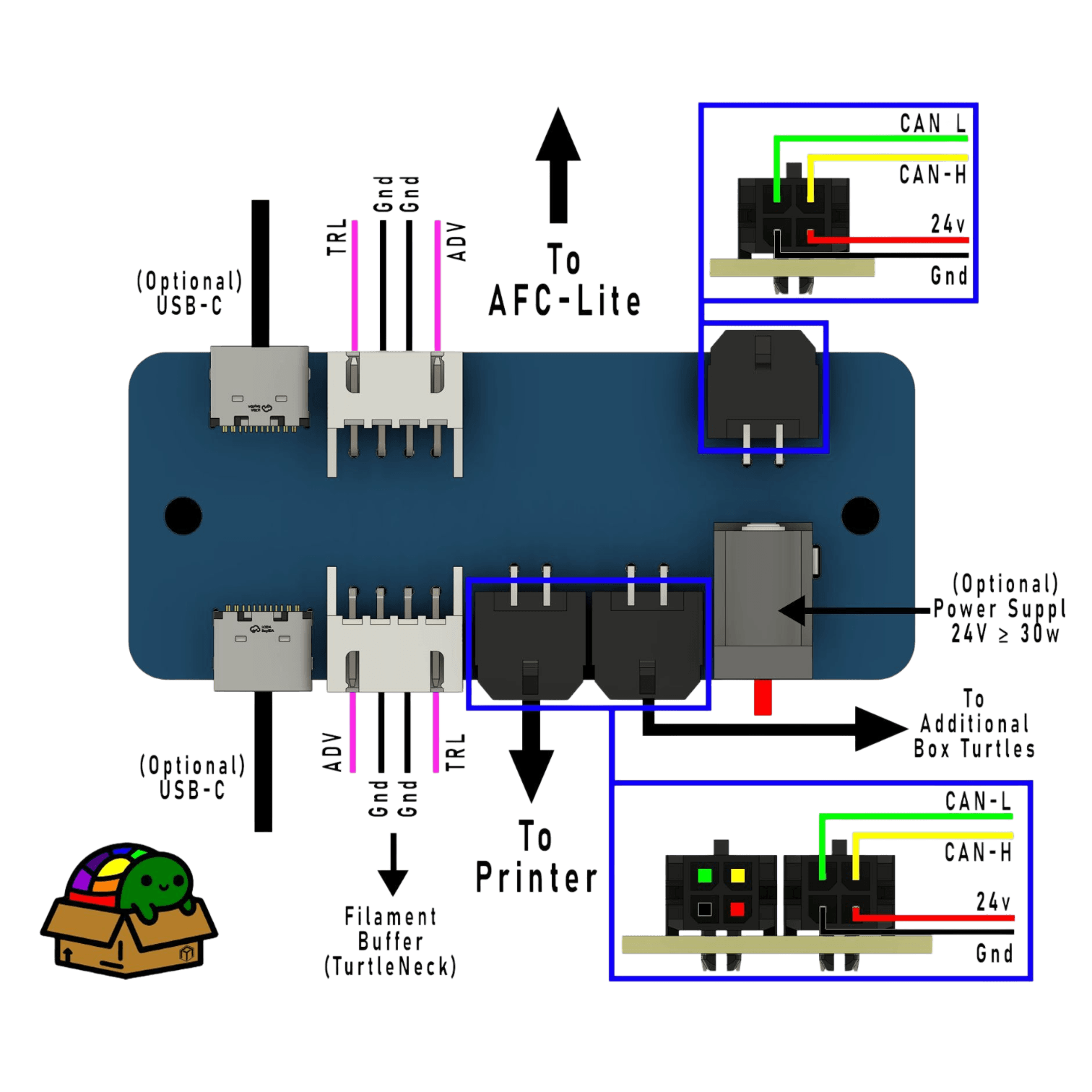

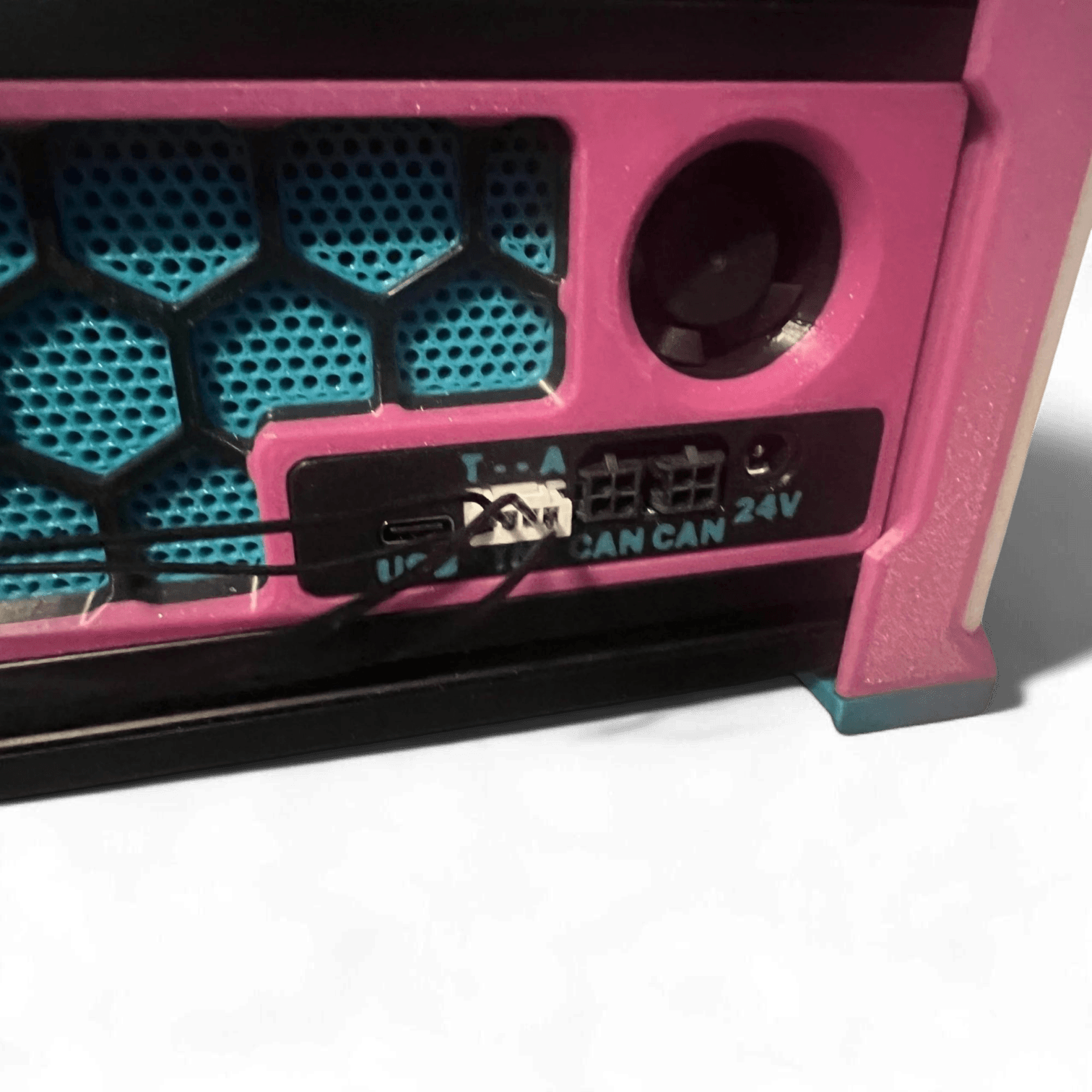

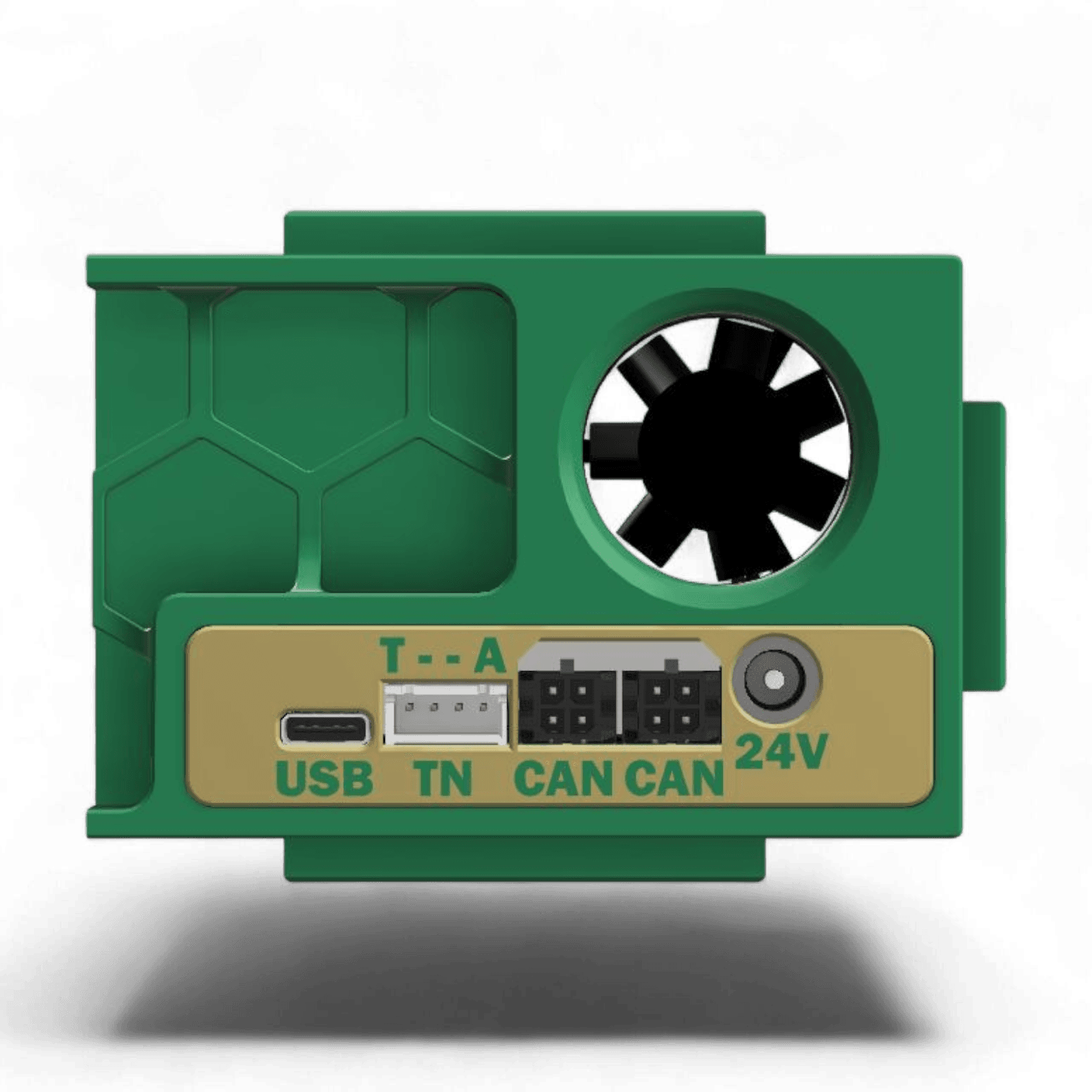

LDO AFC-IO Board for BoxTurtleThe LDO AFC-IO Board for BoxTurtle is a purpose-built input-output expansion module. It is designed to streamline connectivity and enhance control. This is particularly useful in multi-colour 3D printing systems. As the centralized hub for the BoxTurtle Automated Filament Changer (AFC), this board ensures efficient signal routing. It also provides clean wiring, and seamless integration with the broader AFC ecosystem.Key Features:Simplified Integration: The BoxTurtle IO (BTIO) module provides a dependable interface for linking the printer, connecting the toolhead buffer, and supporting daisy-chained configurations for multi-unit expansion.External Power Delivery Support: Enables stable operation over USB or dedicated power sources, ensuring uninterrupted performance.Optimized Wiring Management: Reduces complexity by consolidating connections, improving reliability and ease of maintenance.Common Ground Design: With the exception of USB lines, all ground connections share a common ground, ensuring electrical stability.Toolhead Buffer Adaptability: The “TN” port includes two ground pins to mirror the original connector layout, allowing users to repin their toolhead buffer cable into a new single connector without soldering.Performance & Applications:The AFC-IO Board is engineered for high-precision filament management, ensuring consistent signal integrity while minimizing wiring complexity. Whether used in multi-material 3D printing, automated manufacturing, or custom motion control systems, this board provides robust connectivity and enhanced functionality.By offering expanded control without increasing system complexity, the LDO AFC-IO Board is an essential upgrade for users seeking efficient filament handling and optimized machine integration.More information on GIT
