BIGTREETECH U2C V2.1-3 CAN Output

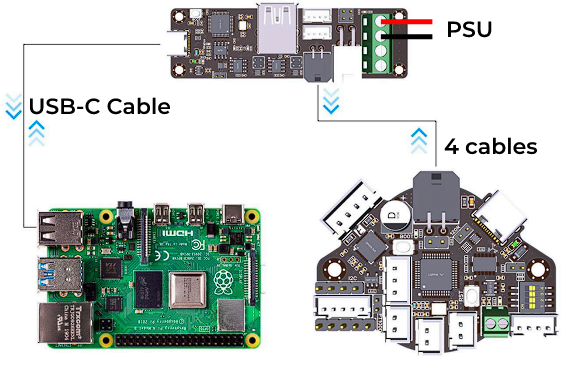

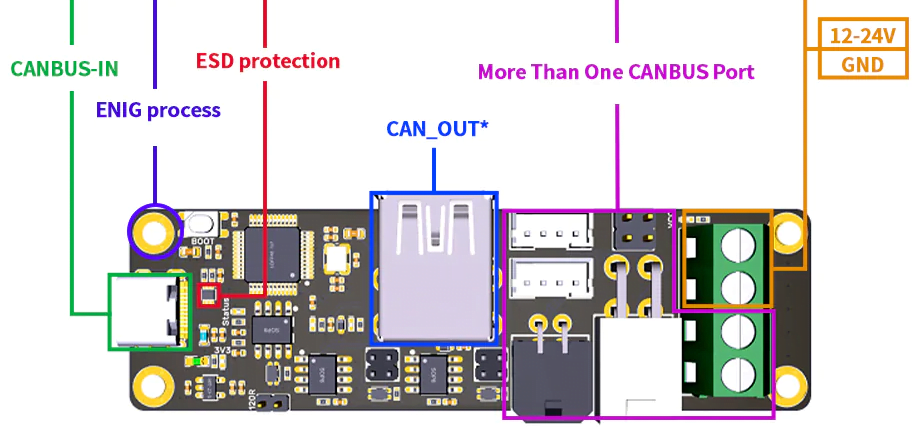

BIGTREETECH U2C V2.1-3 CAN OutputThe BIGTREETECH U2C V2.1-3 CAN Output is an USB-to-CAN interface board with 3x CAN and USB interfaces.All counterpart connectors (incl. pins included (excl. USB).The Bigtreetech U2C boards converts CAN bus communication to USB, so you can connect your Raspberry Pi to a CAN toolhead board (e.g. the BTT EBB36 or EBB42).The adapter comes with different types of CAN connectors to facilitate the wiring.Product features:Support CAN bus connection, long data transmission, strong anti-noise ability, strong real-time performance and high reliability.The surface of the PCB adopts the ENIG process.The TYPE-C port is equipped with ESD protection to prevent static electricity from damaging the hardware.Support firmware update for the motherboard through SWD or hardware DFU.More than one CAN interface.Firmware for V2.0/2.1 can be downloaded here (MCU Model: STM32G0B1C8)Raspberry Pi (Klipper) configurationFirmware Configuration ReferenceSSH into your RaspberryPiGenerate the file can0 with Nano or the editor of your choice:sudo nano /etc/network/interfaces.d/can0Paste the following text into the generated document:allow-hotplug can0 iface can0 can static bitrate 500000 up ifconfig $IFACE txqueuelen 1024 pre-up ip link set can0 type can bitrate 500000 pre-up ip link set can0 txqueuelen 1024Exit and save:CTRL X Y EnterReboot the RaspberryPi:sudo rebootTest the connection:ip -s link show can0You should see a message like:3: can0: <NOARP,UP,LOWER_UP,ECHO> mtu 16 qdisc pfifo_fast state UP mode DEFAULT group default qlen 1024Every device on CANBus generates a canbus_uuid based on the MCU’s UID, to find each microcontroller’s device ID, make sure the hardware is powered on and wired correctly, then run:~/klippy-env/bin/python ~/klipper/scripts/canbus_query.py can0If an uninitialized CAN device is detected, the above command will report the device’s canbus_uuid:Found canbus_uuid=0exxxxxxxxxIf Klipper is already running and connected to this device, the canbus_uuid will not be reported, which is normal.More details in the User manualPrecautions12/24V and GND should be connected correctly.When using CAN communication, you need to see which CAN node is used as a terminal (in the typical Voron use case both CAN nodes need to be terminated). To terminate the U2C, you must plug the jumper cap into the 120R position.
